Description
Function:

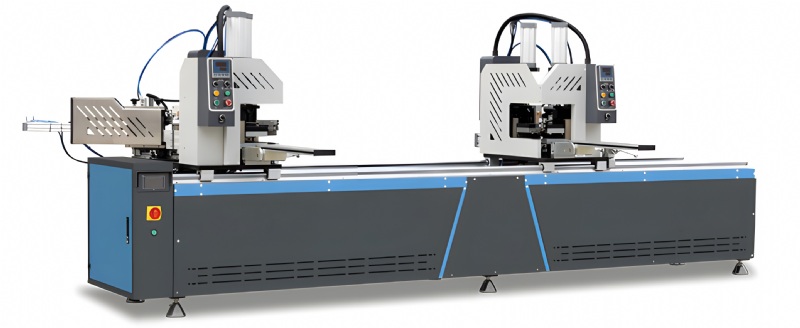

Used for top grade white and color uPVC doors and windows profile welding.
Main Features:
The machine adopt strong rigidity design which can ensure long time work stability.
The machine base and machine head adopt guide linear bearings, high precision.
The machine can be installed with welding blocks to improve welding strength and welding appearance.
180Mm maximum height welding, large processing range, high welding strength.
Adopt high quality electrical and pneumatic element, which can ensure the long time stability.
Main Parameter:
Air Pressure: 0.6MPa~0.8MPa
Air Consumption: 40L/min
Input Power: 3.5KW
Profile Height: 30mm-180mm
Profile Width: 30mm-110mm
Welding Width: 385mm-3000mm
Overall Dimension: 4300mm×1850mm×1700mm
Weight: 1500kg
Used for top grade white and color uPVC doors and windows profile welding.
Main Features:
The machine adopt strong rigidity design which can ensure long time work stability.
The machine base and machine head adopt guide linear bearings, high precision.
The machine can be installed with welding blocks to improve welding strength and welding appearance.
180Mm maximum height welding, large processing range, high welding strength.
Adopt high quality electrical and pneumatic element, which can ensure the long time stability.
Main Parameter:
Air Pressure: 0.6MPa~0.8MPa
Air Consumption: 40L/min
Input Power: 3.5KW
Profile Height: 30mm-180mm
Profile Width: 30mm-110mm
Welding Width: 385mm-3000mm
Overall Dimension: 4300mm×1850mm×1700mm
Weight: 1500kg
