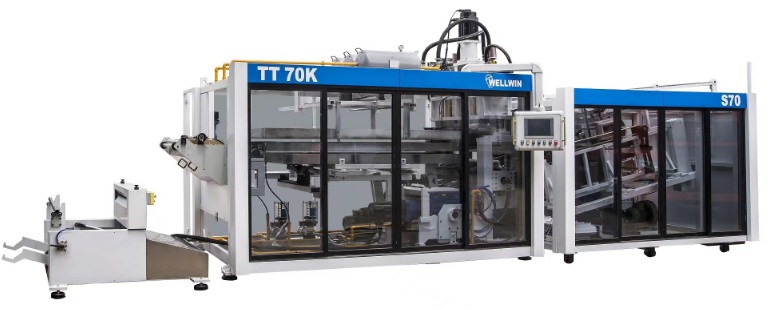

Thermoforming machine with tilting mould ( Cup Making Machine)

This machine is suitable for producing various disposable thermoforming positive pressure plastic containers.
It features automatic sheet sending, heating,forming and stacking.
Applicable Material：PP/PS/PET/PLA/PVC

Main Specifications of the machine
1.Model：TT-70K
2.Forming Size (Max)：690×340mm
3.Forming Depth (Max)：180mm
4.Maximum Sheet Width：740mm
5.Sheet Thickness：0.25-2.5mm
6.Maximum Mould Clamping Force：350KN
7.Maximum Idle Running Speed：45 Cycles/Min
8.Upper/Lower Heating Oven Power：46KW/41KW
9.Compressed Air Pressure：0.8Mpa
10.Total Machine Power：113.7KW
11.Contour Size of the machine：8.32×3.2×3.5米
12.Machine weight：11 ton.

---
