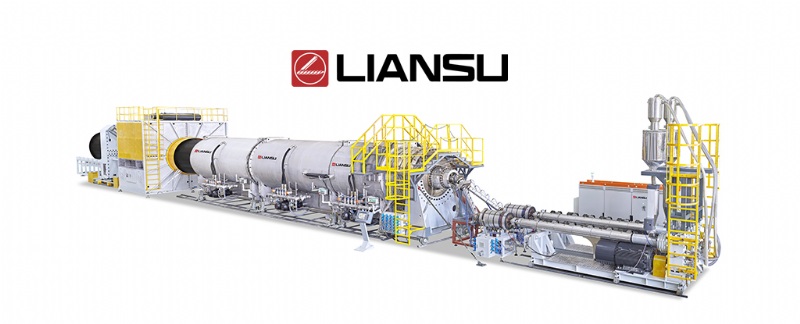

OD 2000mm HDPE Pipe Extrusion Line

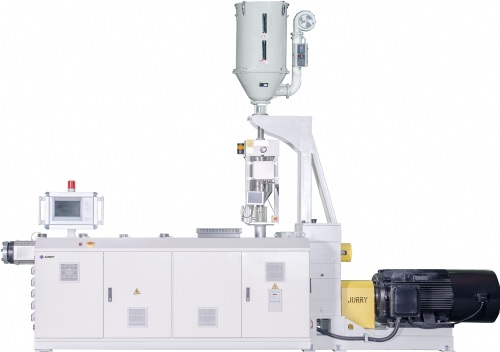

Extruder?adopts 40 L/D?screw barrel with spiral feed bush, ensuring high output?and?good plasticizing quality and low melt temperature .
Adopt ?Melt Cooler after extruder?which can reduce material sagging?and ensure uniform pipe?thickness.
Pipe Head adopt spiral + basket structure,?equipped with multi-spiral flow distribution body and air ?oil cooling structure to further stabilize the melt temperature.
Vacuum?control adopts automatic negative pressure closed-loop control system to ensure rapid pipe forming?, noise reduction?and more than 50%?energy saving rate.
Haul off Unit adopts?"one-to-multiple" servo synchronous control with speed ratio range exceeding 30 times, stable pulling?force and waste reduction.
The automatic swarfless cutter?is equipped with "one-button automatic diameter change" function?and it can cut?large-diameter pipe simply and quickly.

---
